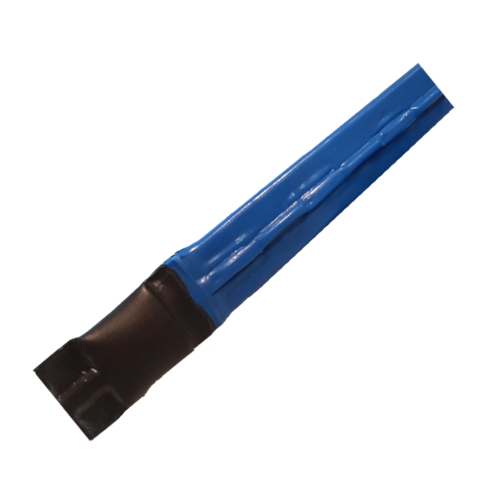

Very high sensitivity contact strip

CSW

Very high sensitivity contact strip for control or safety applications.
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY

Plus points

IP67: tape can be immersed in water
Custom-made
Reliability: > 3 million pulses at a single point
Very high sensitivity
Activated by finger, hand or mechanically
Used to start stopwatches in swimming, cycling competitions
Fixed with adhesive
Blue colour or grey

Max Trigger force in N
Max Trigger force in Kg
Radius of Curvature in mm
Ingress Protection
Material
Level of safety relays

Selection criteria
What length in mm ? Validate cancel the current entry

	Reference	Price excl. VAT
	PRSU4 24 V edge control unit Tapis et ruban montage sur rail DIN	Log in to access tariffs

Add

Authorisation(s) and certification(s)

Unfold Close

Technical characteristics

Unfold Close

Product description :	Very high sensitivity contact strip
Max Trigger force in N	6 Newton
Max Trigger force in Kg	0.6 Kilogram
Sensitivity	High
Radius of Curvature in mm	4 Millimeter
Activation Mode	Finger / Hand / Mechanical
Breaking capacity	1 A
Ingress Protection	IP67
Min Operating Temperature	-20 Degree Celsius
Max Operating Temperature	50 Degree Celsius
Voltage - Current Type	VDC
Voltage	30
Cable Length	450 mm
Level of safety relays	Category 3
Weight per meter	0.065 Kg/Meter
Width	14.200 Millimeter
Depth / Thickness	3.800 Millimeter
Material	PVC
Fixing mounting	Collage
