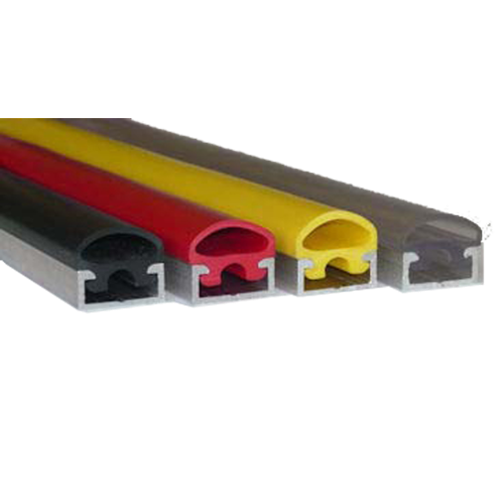

High-sensitivity contact edge

TS6

WARNING: N.O. Operation
Edge/bulge with flat profile, high-sensitivity to prevent risk of pinching. Easy installation, ideal for small spaces.
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY

Plus points

Made to measure (max. 4m)
Reliability: > 3 million pulses at a single point
Easily installed in aluminium or plastic rail
End Caps included for a better quality finish
Control and safety applications
High sensitivity

Max Trigger force in N
Max Trigger force in Kg
Max Deformation Zone
Ingress Protection
Material
Level of safety relays

Selection criteria
Choice of color ? Validate cancel the current entry

	Reference	Price excl. VAT
	PRSU4 24 V edge control unit Tapis et ruban montage sur rail DIN	Log in to access tariffs

Add

Authorisation(s) and certification(s)

Unfold Close

BSI
2006/42/CE

TS6_DoC_ANG

Technical characteristics

Unfold Close

Product description :	High-sensitivity contact edge
Max Trigger force in N	55 Newton
Max Trigger force in Kg	5.5 Kilogram
Sensitivity	High
Activation Distance	3.500 Millimeter
Max Deformation Zone	1 Millimeter
Activation Mode	Frontal crush
Breaking capacity	1 A
Ingress Protection	IP65
Min Operating Temperature	-20 Degree Celsius
Max Operating Temperature	50 Degree Celsius
Voltage - Current Type	VDC
Voltage	30
Cable Length	450 mm
Level of safety relays	Category 3
Weight per meter	0.300 Kg/Meter
Width	18.000 Millimeter
Depth / Thickness	7.800 Millimeter
Material	PVC
Duct Material	PVC
Fixing mounting	Rail
