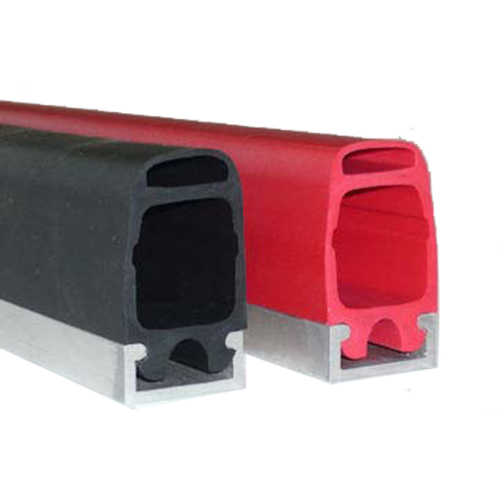

Medium sensitivity edge

TS47

WARNING: N.O. Operation
Edge, sensitive bulge, thanks to the contact strip positioned on the upper part of the cable duct. Suitable for safety applications requiring immediate activation and significant deformation zone.
Maximum rail length: 4m
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY

Plus points

Made to measure (max. 4m)
Reliability: > 3 million pulses at a single point
Frontal impact detection
End Caps included for a better quality finish
Immediate detection with deformation zone

Max Trigger force in N
Max Trigger force in Kg
Activation Distance
Max Deformation Zone
Ingress Protection
Level of safety relays

Selection criteria
Choice of color ? Validate cancel the current entry

	Reference	Price excl. VAT
	PRSU4 24 V edge control unit Tapis et ruban montage sur rail DIN	Log in to access tariffs

Add

Authorisation(s) and certification(s)

Unfold Close

2006/42/CE

TS47_DoC_ANG

Technical characteristics

Unfold Close

Product description :	Medium sensitivity edge
Max Trigger force in N	120 Newton
Max Trigger force in Kg	12 Kilogram
Sensitivity	Average
Activation Distance	2 Millimeter
Max Deformation Zone	24 Millimeter
Activation Mode	Frontal and lateral crushing
Breaking capacity	1 A
Ingress Protection	IP65
Min Operating Temperature	-20 Degree Celsius
Max Operating Temperature	50 Degree Celsius
Voltage - Current Type	VDC
Voltage	30
Cable Length	2000 mm
Level of safety relays	Category 3
Weight per meter	1.100 Kg/Meter
Width	28.700 Millimeter
Depth / Thickness	39.500 Millimeter
Duct Material	Santoprene
Fixing mounting	Rail
