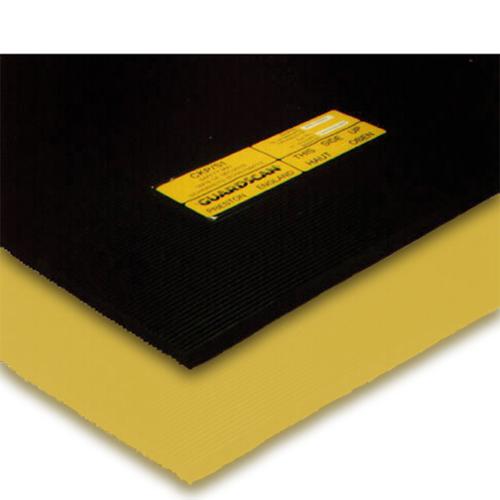

Reinforced sensitive mat
CKP
Sensitive mat for control and safety applications.
Max Length: 2,400 mm - Max Width: 1,200 mm
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY
Made to measure
Reliability: > 3 million pulses in a single point
Mats designed for safety applications in industrial environments Customisation: multi-zone, dimensions, sensitivity, colours and logos
Voir Plus
-
Max Trigger force in N
-
Inactive Area Around Mats
-
Max Trigger force in Kg
-
Ingress Protection
-
Material
-
Response Time
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
Choice of color ?
|
Authorisation(s) and certification(s)
Unfold Close2006/42/CE
Technical characteristics
Unfold Close| Product description : | Reinforced sensitive mat |
| Max Trigger force in N | 300 Newton |
| Max Trigger force in Kg | 30 Kilogram |
| Sensitivity | Low |
| Inactive Area Around Mats | 30 Millimeter |
| Activation Mode | Surface detection |
| Breaking capacity | 1 A |
| Response Time | 30 |
| Ingress Protection | IP65 |
| Max Operating Temperature | 50 Degree Celsius |
| Voltage - Current Type | VDC |
| Voltage | 24 |
| Cable Length | 2000 mm |
| Weight per square meter | 32.000 Kg/Square Meter |
| Depth / Thickness | 13.000 Millimeter |
| Material | KOROSEAL |
| Fixing mounting | Without fixing or with AE13 grommets |
