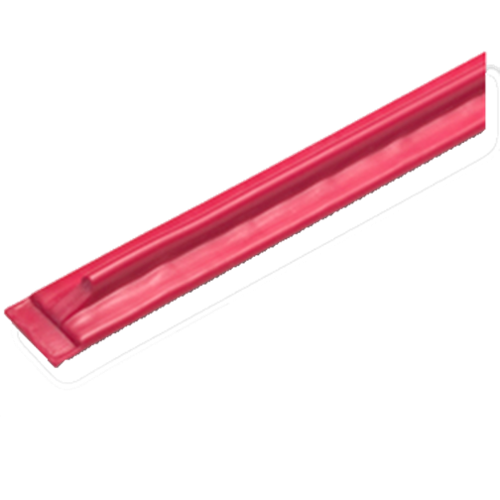

High-sensitivity contact strip
141BPH
High-sensitivity contact strip with raised profile.
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY
Made to measure
Reliability: More than 3 million pulses at a single point
Raised profile: increased angle of efficiency
Available colours: white, red
Voir Plus
-
Max Trigger force in N
-
Max Trigger force in Kg
-
Radius of Curvature in mm
-
Ingress Protection
-
Material
-
Level of safety relays
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
What length in mm ?
|
Authorisation(s) and certification(s)
Unfold CloseTechnical characteristics
Unfold Close| Product description : | High-sensitivity contact strip |
| Max Trigger force in N | 16 Newton |
| Max Trigger force in Kg | 1.6 Kilogram |
| Sensitivity | High |
| Radius of Curvature in mm | 10 Millimeter |
| Activation Mode | Finger / Hand / Mechanical |
| Breaking capacity | 1 A |
| Ingress Protection | IP65 |
| Min Operating Temperature | -20 Degree Celsius |
| Max Operating Temperature | 50 Degree Celsius |
| Voltage - Current Type | VDC |
| Voltage | 30 |
| Cable Length | 450 mm |
| Level of safety relays | Category 3 |
| Weight per meter | 0.065 Kg/Meter |
| Width | 14.200 Millimeter |
| Depth / Thickness | 6.800 Millimeter |
| Material | PVC |
| Fixing mounting | Rail or glue |
