B125
Shock-sensitive bumpers 125mm stand
Log in to access tariffs
Read on

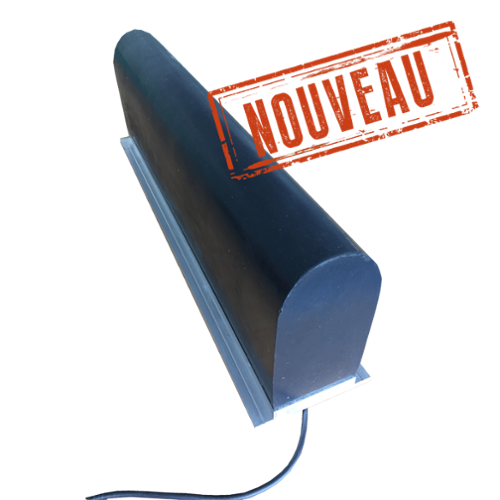

Shock-sensitive bumpers 100mm stand
B100

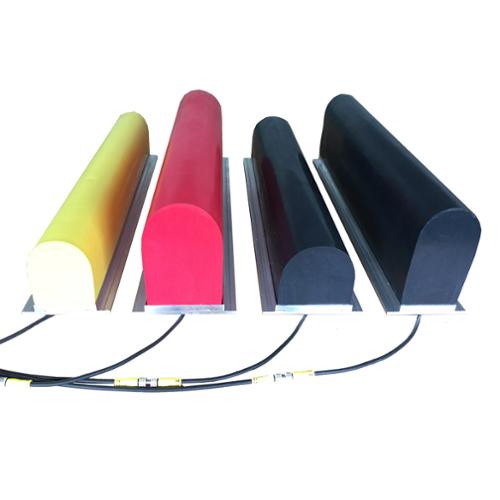

Shock-sensitive detecting bumpers and shock absorbers
Perfect for applications requiring shock absorption by contact detection.
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY
Customised mould construction: the shape can be adapted to your needs
Reliability > 3 million pulses at a single point
Easy installation in an aluminium rail
Safety application
Medium sensitivity
Voir Plus
-
Max Trigger force in N
-
Max Trigger force in Kg
-
Ingress Protection
-
Material
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
Choice of color ?
|
Authorisation(s) and certification(s)
Unfold CloseTechnical characteristics
Unfold Close| Product description : | Shock-sensitive bumpers 100mm stand |
| Max Trigger force in N | 100 Newton |
| Max Trigger force in Kg | 10 Kilogram |
| Sensitivity | Average |
| Breaking capacity | 1 A |
| Ingress Protection | IP65 |
| Min Operating Temperature | -20 Degree Celsius |
| Max Operating Temperature | 50 Degree Celsius |
| Voltage - Current Type | VDC |
| Voltage | 24 |
| Weight per meter | 3.650 Kg/Meter |
| Width | 100.000 Millimeter |
| Material | Urethane rubber |
| Fixing mounting | Aluminium Rail |
