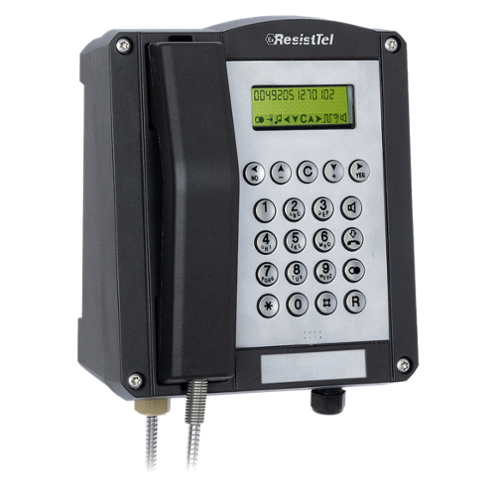

IP66 ATEX wireline phone Vandal proof IK09 - 90dB
RESISTELEX
ATEX landline phone This phone is weatherproof and stands out for its precision, durability and reliability.
Plus pointsVandal resistant phone
Very high impact rating: IK09
Hands-free function
Phone book and other programming available
Voir Plus
-
Output in dB
-
Zones
-
Ingress Protection
-
Impact Resistance
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
RESISTELEX
IP66 ATEX wireline phone Vandal proof IK09 - 90dB
Authorisation(s) and certification(s)
Unfold CloseII 2G Ex e mb [ib] IIC T5 Gb
II 2D Ex tb [ib] IIIC T100°C Db
-25°C Ta 60°C
II 2G Ex e mb [ib] IIC T6 Gb
II 2D Ex tb [ib] IIIC T80°C Db
-25°C Ta 40°C
Technical characteristics
Unfold Close| Product description : | IP66 ATEX wireline phone Vandal proof IK09 - 90dB |
| Output in dB | 90 Decibel |
| Ingress Protection | IP66 |
| Impact Resistance | IK09 |
| Min Operating Temperature | -25 Degree Celsius |
| Max Operating Temperature | 60 Degree Celsius |
| Zones | Zones 1, 2, 21, 22 |
| Cable entries | 3 x M20 (Plugs and cable glands supplied) |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 2.500 Square Millimeter |
| Width | 227.000 Millimeter |
| Height | 266.000 Millimeter |
| Depth / Thickness | 135.000 Millimeter |
| Weight | 5.5 Kg |
| Housing Material | Polyester reinforced with glass fibers |
| Keyboard Material | 316L Stainless steel |
| Fixing mounting | Wall mounting |
| Wall mounted | Yes |
| Flush mounted | No |
| Desk mounted | No |
| Communication Mode | Analog |
| Hands free Yes/No | Yes |
| Telephone Relay | Yes |
| Number of Keys | 21 Keys, 0 Key |
