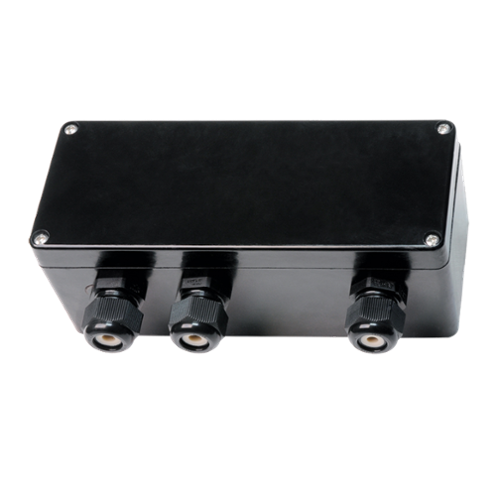

ATEX telephone relay station for Zones 1, 2, 21 and 22
RTATEX
The ATEX telephone relay is used to amplify a telephone ringtone, and designed to use very powerful ATEX visual and sound alarms
Powered via 30 to 100 Vac telephone line
No auxiliary power supply
Can be used with very powerful optical and audible alarms
Can be installed in zones 1, 2, 21 and 22
Includes 2 5 A / 230 Vac relays
Voir Plus
-
Zones
-
Ingress Protection
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
RTATEX
ATEX telephone relay station for Zones 1, 2, 21 and 22
Authorisation(s) and certification(s)
Unfold CloseII 2G Ex e ib mb IIC T4 Gb
II 2D Ex tb IIIC T135°C Db
Technical characteristics
Unfold Close| Product description : | ATEX telephone relay station for Zones 1, 2, 21 and 22 |
| Ingress Protection | IP66 |
| Min Operating Temperature | -40 Degree Celsius |
| Max Operating Temperature | 70 Degree Celsius |
| Zones | Zones 1, 2, 21, 22 |
| Cable entries | 3 M20 cable glands |
| Length | 190.000 Millimeter |
| Width | 75.000 Millimeter |
| Height | 75.000 Millimeter |
| Weight | 1.1 Kg |
| Housing Material | GRP |
| Communication Mode | Analog |
