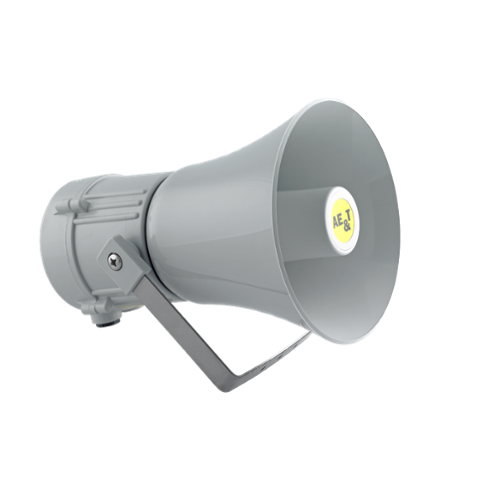

103dB waterproof loudspeaker 25W 16 ohms IP66/67
HPIPLP
These powerful industrial loudspeakers with reinforced seal (IP66 & 67) are perfectly adapted to severe industrial conditions and outdoor use.
Plus pointsHigh protection class (IP66&67)
Sound efficiency (103 dB / 1 W / 1 m)
Easy to install (2 cable entries for parallel connection)
Volume control
Voir Plus
-
Output in dB
-
Ingress Protection
-
Output in Watts
-
Colour (material)
-
Material
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
HPIPLP
103dB waterproof loudspeaker
Authorisation(s) and certification(s)
Unfold CloseTechnical characteristics
Unfold Close| Product description : | 103dB waterproof loudspeaker |
| Output in dB | 103 Decibel |
| Output in Watts | 25 Watt |
| Sound Adjustment | Yes by potentiometer |
| Sound fequency in Hz | 470-6500 Hz |
| Ingress Protection | IP66 / IP67 |
| Min Operating Temperature | -25 Degree Celsius |
| Max Operating Temperature | 55 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Cable entries | 2 x M20 |
| Max. Cable size | 2.500 Square Millimeter |
| Ohms Resistance | 16 Ohms |
| Length | 271.000 Millimeter |
| Diameter | 181.000 Millimeter |
| Weight | 1.7 Kg |
| Material | ABS self-extinguishing |
| Fixing mounting | Fixing with aluminum mounting bracket |
| Colour (material) | Grey |
