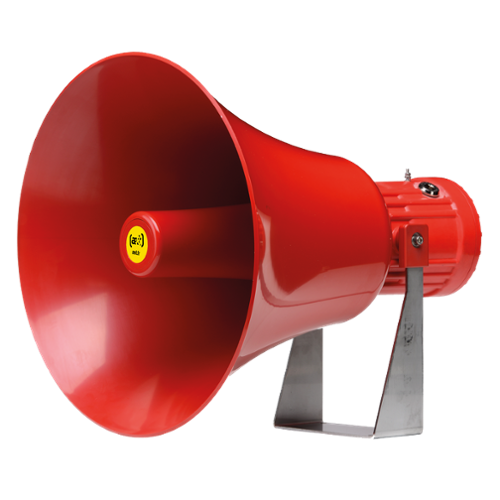

ATEX 126dB siren
GNEXS2H
This powerful siren broadcasts sounds in very loud environments and outdoor ATEX zones.
Plus pointsCorrosion-resistant GRP housing
Horn made of ABS UL94 V0
Powerful sound: 126 dB at 1 metre
4 remotely controllable sounds
Low power consumption
Stainless steel mounting bracket
Voir Plus
-
Zones
-
Ingress Protection
-
Material
-
Number of remote tones
-
Number of Tones
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
GNEXS2H
ATEX 126dB siren
Authorisation(s) and certification(s)
Unfold CloseII 2 G Ex d IIC T4 Ta. -60°C à +50°C
II 2 G Ex d IIC T3 Ta. -60°C à +58°C
II 2 G Ex d IIB T6 Ta. -60°C à +50°C
II 2 G Ex d IIB T5 Ta. -60°C à +58°C
Technical characteristics
Unfold Close| Product description : | ATEX 126dB siren |
| Number of Tones | 64 |
| Number of remote tones | 4 |
| Sound Adjustment | Yes by potentiometer |
| Choice of Tones | Yes - By microswitch |
| Ingress Protection | IP66 |
| Min Operating Temperature | -60 Degree Celsius |
| Max Operating Temperature | 58 Degree Celsius |
| Zones | Zones 1, 2 |
| Power supply frequency | 50 / 60 Hz |
| Cable entries | 1 ATEX Plug M20 + 1 unarmoured cable gland ATEX M20 |
| Min.Cable size | 0.400 Square Millimeter |
| Max. Cable size | 4.000 Square Millimeter |
| Power Factor | 100 % |
| Length | 463.500 Millimeter |
| Diameter | 404.000 Millimeter |
| Material | GRP |
| Fixing mounting | 316L stainless steel mounting bracket |
| Tolerance | 100-260 VAC, 10-30 VDC |
| Voltage - Current Type | VAC, VDC |
| Voltage | 230, 115, 24, 12 |
| Nominal consumption | 78 mA @230Vca, 324 mA @24Vcc |
| Weight | 3.2 Kg, 3 Kg |
