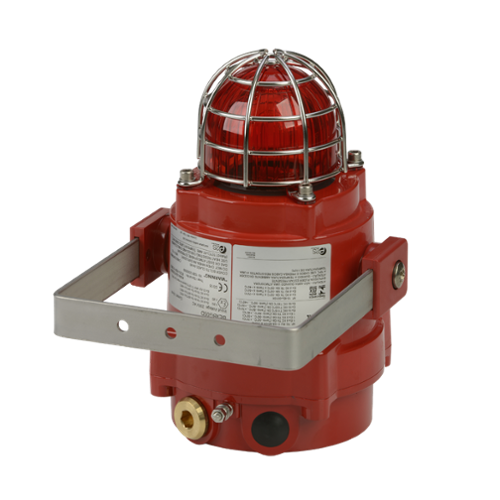

Compact 5J 105cd ATEX strobe light Aluminium - IP66 IP67
BEXBG05D
The electronic design of this strobe provides a high-quality visual result, and reduced energy consumption.
Plus pointsAluminium housing LM6
Very easy wiring
Two cable entries on the same side
Internal and external earth terminal
Protective grid included
Voir Plus
-
Effective Range in Joules
-
Zones
-
Ingress Protection
-
Colour (material)
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
BEXBG05D
Compact 5J 105cd ATEX strobe light Aluminium - IP66 IP67
Authorisation(s) and certification(s)
Unfold CloseII 2G Ex db IIC T5 Gb Ta. -50°C to +40°C
II 2G Ex db IIC T4 Gb Ta. -50°C to +70°C
II 2D Ex tb IIIC T90°C Db Ta. -50°C to +40°C
II 2D Ex tb IIIC T105°C Db Ta. -50°C to +55°C
II 2D Ex tb IIIC T123°C Db Ta. -50°C to +70°C
Technical characteristics
Unfold Close| Product description : | Compact 5J 105cd ATEX strobe light Aluminium - IP66 IP67 |
| Functions | Flash |
| Lighting source | Xenon |
| Effective Range in Joules | 5 Joule |
| Effective Range in Candelas | 120 Candela |
| Flash Rate | 1 Hz (60 Flashs / min) |
| Average life time of the flash | 70% efficiency after 8 million Flashes |
| Synchronisation | Yes (in parallel mounting) |
| Ingress Protection | IP66 / IP67 |
| Min Operating Temperature | -50 Degree Celsius |
| Max Operating Temperature | 70 Degree Celsius |
| Protection Grid | Incluse |
| Zones | Zones 1, 2, 21, 22 |
| Relative Humidity | 90% at 20°C |
| Cable entries | 2 x M20 (Plugs and cable glands supplied) |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 4.000 Square Millimeter |
| Power Factor | 100 % |
| Width | 165.000 Millimeter |
| Height | 246.000 Millimeter |
| Housing Material | Aluminium LM6 |
| Optical Materials | Glass |
| Fixing mounting | Fixing on adjustable bracket |
| Mounting | Surface mounting |
| Wall mounted | Yes |
| Ceiling mounted | Yes |
| Colour (material) | Red |
| Available Lens Colours | Red, Amber, Yellow, Clear, Blue, Green |
| Tolerance | 20-28 VDC, +/- 10% VAC, 42-54 VDC |
| Voltage - Current Type | VDC, VAC |
| Voltage | 24, 230, 48, 115 |
| Nominal consumption | 300 mA, 55 mA, 180 mA, 140 mA |
| Weight | 2.45 Kg, 2.75 Kg |
