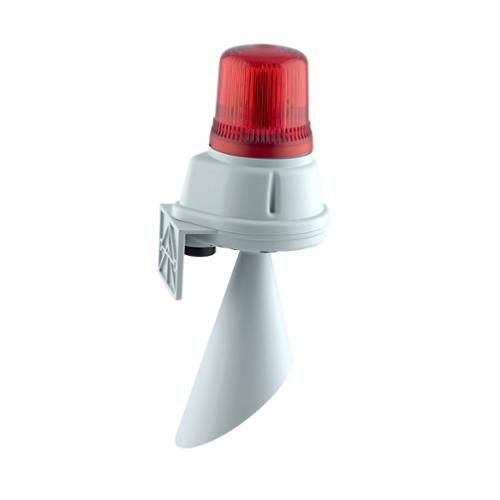

100dB horn and LED light combi
F100TL
This 100 dB electronic horn is fitted with a continuous LED indicator light.
Plus points3 tones available with volume control
Service life of the LEDs and reliability of the electronics
Wide voltage tolerance
Easy to install
Low overall power consumption
Voir Plus
-
Output in dB
-
Ingress Protection
-
Number of Tones
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
| Selection criteria |
|
|
F100TL
100dB horn and LED light combi
Authorisation(s) and certification(s)
Unfold Close
Technical characteristics
Unfold Close| Product description : | 100dB horn and LED light combi |
| Functions | Permanent |
| Lighting source | LED |
| Effective Range in Candelas | 5.5 Candela |
| Output in dB | 100 Decibel |
| Number of Tones | 3 |
| Sound Adjustment | Yes by potentiometer |
| Choice of Tones | Yes |
| Acoustic signal type | Programmable tone |
| Ingress Protection | IP65 |
| Min Operating Temperature | -25 Degree Celsius |
| Max Operating Temperature | 50 Degree Celsius |
| Min Storage Temperature | -40 Degree Celsius |
| Max Storage Temperature | 70 Degree Celsius |
| Relative Humidity | 90% at 20°C |
| Cable entries | 1 x 5-7 mm |
| Min.Cable size | 0.500 Square Millimeter |
| Max. Cable size | 1.500 Square Millimeter |
| Power Factor | 100 % |
| Height | 241.200 Millimeter |
| Diameter | 84.500 Millimeter |
| Depth / Thickness | 94.200 Millimeter |
| Weight | 0.215 Kg |
| Housing Material | ABS |
| Optical Materials | Polycarbonate |
| Available Lens Colours | Amber, Red, Blue, Yellow, Green |
| Tolerance | 10-30 VDC, 90-260 VAC |
| Voltage - Current Type | VDC, VAC |
| Voltage | 24, 230 |
| Nominal consumption | 104 mA, 42 mA |
