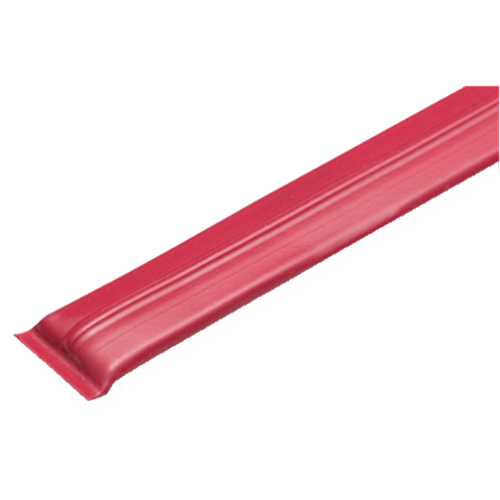

High-sensitivity contact strip

180

This strip is activated by pressure (standard), and at every bend. It is used for detection or counting systems or on conveyor belts.
COMPLIES WITH MACHINERY DIRECTIVE 2006/42/EC WHEN USED WITH OUR PRSU4 RELAY

Plus points

Made to measure, according to specifications
Reliability: > 3 million pulses at one point
Activation by bending up to 12°
Application type: sensor on conveyor belt
Available colour: red

Max Trigger force in °
Radius of Curvature in °
Ingress Protection
Material
Level of safety relays

Selection criteria
What length in mm ? Validate cancel the current entry

	Reference	Price excl. VAT
	PRSU4 24 V edge control unit Tapis et ruban montage sur rail DIN	Log in to access tariffs

Add

Authorisation(s) and certification(s)

Unfold Close

Technical characteristics

Unfold Close

Product description :	High-sensitivity contact strip
Max Trigger force in °	12 Degrees
Sensitivity	High
Radius of Curvature in °	12 Degrees
Activation Mode	Curvature up to 12 °
Breaking capacity	1 A
Ingress Protection	IP65
Min Operating Temperature	-20 Degree Celsius
Max Operating Temperature	50 Degree Celsius
Voltage - Current Type	VDC
Voltage	30
Cable Length	450 mm
Level of safety relays	Category 3
Weight per meter	0.065 Kg/Meter
Width	14.200 Millimeter
Depth / Thickness	3.800 Millimeter
Material	PVC
Fixing mounting	Collage
