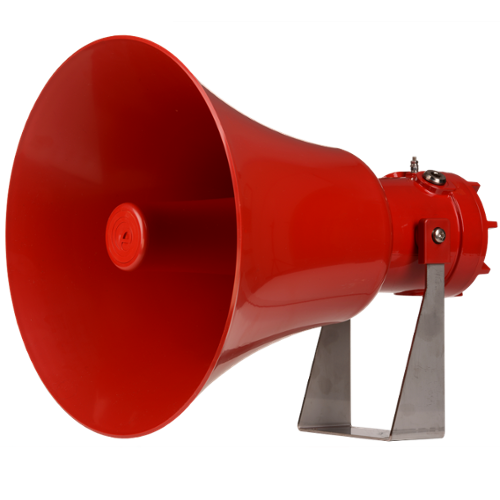

Siren 128dB ATEX/IECEx/UL

D1xS2H

This new siren generation offers optimal sound output level high efficiency, and adjustable volume

Plus points

SIL1, SIL2 Route 2H
SIL 2 Route 1H with diagnostic in option (24 Vdc only)
Corrosion proof LM6 marine grade aluminium
Adjustable output sound level
Five cable enries

Output in dB
Zones
Certifications
Certifications
Ingress Protection
Material
Number of remote tones
Number of Tones

Lead time :

Selection criteria
Remove filters
Voltage - Current Type : Voltage : Colour (material) :

D1xS2H

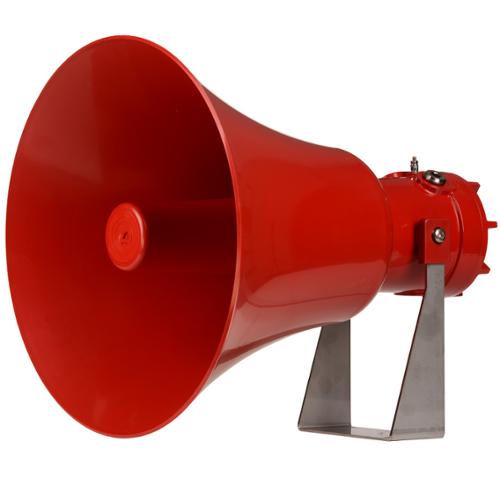

Siren 128dB ATEX/IECEx/UL

See the references and availabilities for this series Unfold Close

Authorisation(s) and certification(s)

Unfold Close

IECEx / ATEX
II 2G Ex db IIC T5 Gb Ta -55°C to +75°C
II 2G Ex db IIC T6 Gb Ta -55°C to +60°C
II 2D Ex tb IIIC T93°C Db Ta ‐55°C to +75°C

D1xS2H_Certificat_ATEX_ANG

D1xS2H_Certificat_IECEx_ANG

D1xS2H_Certificat_UL_ANG

D1xS2H_Certificat_UKCA_ANG

D1xS2H_Certificat_ECAS_ANG

D1xS2H_Certificat_SIL_ANG

D1xS2H_DoC_EU_ANG

D1xS2H_DoC_UKCA_ANG

Technical characteristics

Unfold Close

Product description :	Siren 128dB ATEX/IECEx/UL
Output in dB	128 Decibel
Number of Tones	64
Number of remote tones	4
Sound Adjustment	Yes by potentiometer
Choice of Tones	Yes - By microswitch
Sound Synchronisation	Yes in parallel connection
Certifications	SIL2
Certifications	UL
Ingress Protection	IP66 / IP67
Min Operating Temperature	-55 Degree Celsius
Max Operating Temperature	85 Degree Celsius
Zones	Zones 1, 2, 21, 22
Cable entries	1 x 1/2NPT + 2 x M20
Min.Cable size	0.500 Square Millimeter
Max. Cable size	2.500 Square Millimeter
Power Factor	100 %
Height	464.900 Millimeter
Diameter	403.200 Millimeter
Weight	4.6 Kg
Material	Aluminium LM6
Housing Material	Marine aluminum LM6
Fixing mounting	Fixing on bracket
Colour (material)	Red
Tolerance	11.5-54 VDC, 100-260 VAC
Voltage - Current Type	VDC, VAC
Voltage	12, 24, 48, 115, 230
Nominal consumption	324 mA @24Vcc, 78 mA @230Vca
