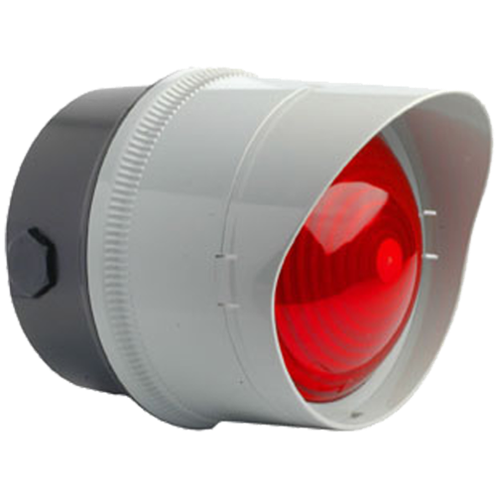

Maxi LED traffic light Multimode 177 x ø140mm IP65

O450HLED

Highly visible LED maxi traffic light. It can be used in any industrial environment thanks to a high degree of protection (IP65).

Plus points

8 operating modes - Continuous, Blinking, Strobe -
Fresnel effect cap reinforcing the efficiency of the LEDs
Excellent degree of protection: IP65
Optional mounting bracket to assemble several lights
Easy installation: 3 cable entries

Voir Plus
  • Ingress Protection
Lead time :
Log in to access tariffs
LOG IN - NOT ONLINE - CONTACT US
Selection criteria

O450HLED

Maxi LED traffic light Multimode 177 x ø140mm IP65

Authorisation(s) and certification(s)

Unfold Close

Technical characteristics

Unfold Close
Product description : Maxi LED traffic light Multimode 177 x ø140mm IP65
Functions Permanent
Functions Flash
Functions Blinking
Lighting source LED
Effective Range in Candelas 356 Candela
Ingress Protection IP65
Min Operating Temperature -40 Degree Celsius
Max Operating Temperature 70 Degree Celsius
Min Storage Temperature -40 Degree Celsius
Max Storage Temperature 70 Degree Celsius
Relative Humidity 95% at 20°C
Cable entries 3 inlets
Min.Cable size 0.200 Square Millimeter
Max. Cable size 2.500 Square Millimeter
Power Factor 100 %
Height 177.000 Millimeter
Diameter 140.000 Millimeter
Weight 0,425 Kg
Housing Material High strength polycarbonate
Fixing mounting On vertical wall or on square
Available Lens Colours Green, Clear, Amber, Red, Blue, Yellow
Tolerance 48-260 VDC/VAC, 10-14 VDC / 16-33 VDC
Voltage - Current Type VDC/VAC, VDC, VAC
Voltage 230, 115, 48, 12, 24
Nominal consumption 55 mA, 180 mA @24 Vdc
